Features

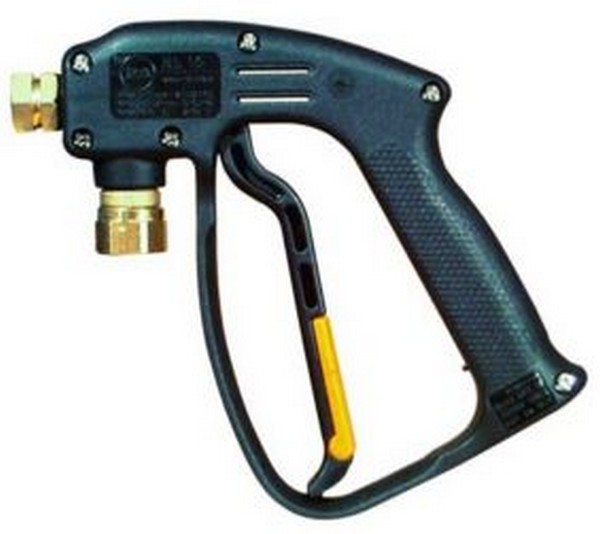

- Front inlet gun, internal body in brass and steel.
- The seat is made of Zytel®, the ball of stainless steel.
- Covered by shockproof plastic semi-housings.
- Ergonomic construction, with minimum fatigue for trigger opening.
Specifications
- Inlet: 3/8″ BSP F
- Outlet: 1/4″ BSP F
- Working Pressure: 2,300 PSI
- Maximum Pressure: 2,550 PSI
- Nominal Flow: 30 L/min
- Temperature: 100°C
- Weight: 270 g
Range Review
| Part # | Inlet | Outlet | Weight |
|---|---|---|---|
| 145 30.0000.20 | 1/4″ BSP F | 1/4″ BSP F | 256 g |
| 145 30.0000.40 | 1/4″ BSP M | 1/4″ BSP F | 256 g |
| 145 30.0000.00 | 3/8″ BSP F | 1/4″ BSP F | 270 g |
| 145 30.0000.50 | 3/8″ BSP F | 1/4″ BSP F | 269 g |
| 145 30.0000.45 | To M22 | 1/4″ BSP F | 270 g |
