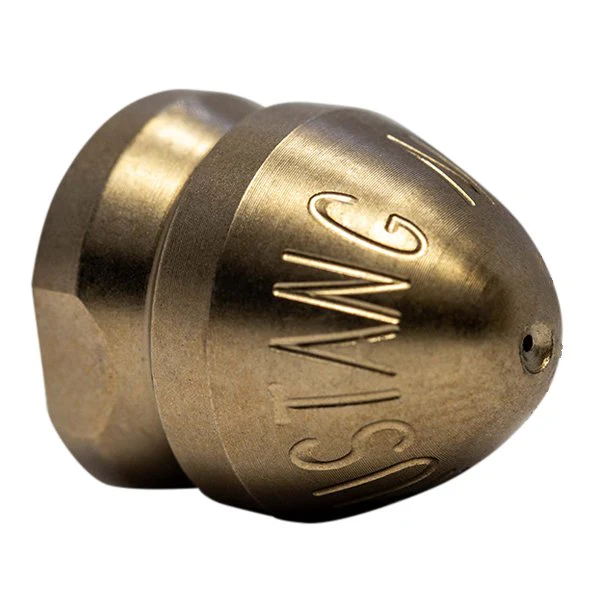

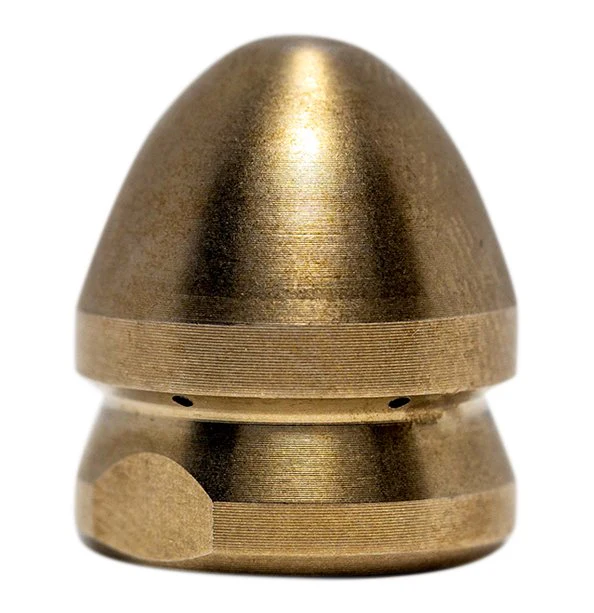

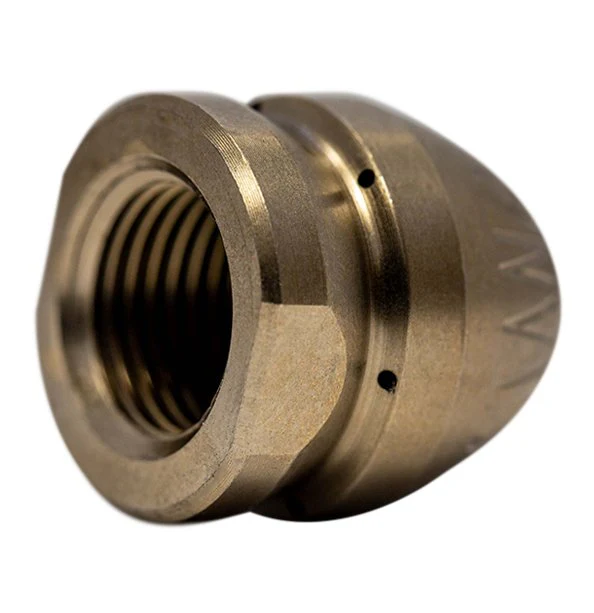

- Compressor Nozzles 1/8″ Series with BSP 1/8″ F are available with the choice of either Thrusting, Penetrating and Invading jet configuration.
- The small body with a round nose allows this nozzle to bury deep into tight blockages. Some NPT options are available.
- It is used where a small nozzle is required to break up blockage material in small diameter drains and clears tree roots, sand, soil, grease, ice and debris.
- It is used on 1/8″ Whip Hoses, Bullet Nozzles and all other 1/8″ hose fittings.
Specifications
Nozzle Styles | Thruster | Penetrator | Invader |
Front Jets | 0 – 0° | 1 – 0° | 1 – 0° |
Rear Jets | 6 – 20° | 3 – 30° | 6 – 30° |
Part # | C6R | C3R1F C3R1F-N | C6R1F C6R1F-N |
Connection | BSP 1/8″ F | BSP 1/8″ F NPT 1/8″ F | BSP 1/8″ F NPT 1/8″ F |
Pipe Size | Up to 100mm | Flow Index | 055 |
Weight | 10g | ||
Dimensions | L-17mm W-14mm H-14mm |
